Home / Products / Tractor / JINMA tractor 220-260HP series /

JM-YT2604

Model NO.:YT2604
Usage:farming
Drive Wheel:4WD
Fuel:diesel
Size:Heavy
Condition:New
Trademark:JINMA/HHJM/JM
Origin:Yancheng Jiangsu
Type:diesel engine tractor
Certification:CE

  • Description

Description

Tractor
Parameters
Model JM-YT2604
Drive Type 4WD
Overall Dimensions  L×W×H(mm): 5700×2650×3150
Wheel Track (mm) Front 1600、1880、1920、1980、2020、2300
Rear 1800-2380
Wheel Bass(mm) 3000
Ground Clearance (mm) 450
Rated Traction Force(N) 76900
Minimal Service Mass(kg) 8450
Min.Turning Radius(m) 6
Theoretical Speed (km/h) Forward 0.494-31.61
Reverse 0.421-26.97
Engine
Specifications
Model SC7H290G4
Type 6-cylinder
Vertical, water cooled, Turbo
4 stroke cycle
Rated Power(kw/hp) 191.5/260
Rated Speed (rpm) 2200
Bore×Stroke (mm) 108×130
Total Displacement (L) 7.15
Drive
System
Clutch  Dual Stage
Gear Box 4×4×(1+1)×2Synchronizer shift、Sleeve gear shift
Main Drive One pair of spiral bevel gear
Differential Bevel gear
Differential Lock Sliding pin,foot operated
Final Transmission Planetary reduction gear
Traveling
Mechanism
Tyre Front 540/65R28、540/65R30、420/85R28、16.9-28
Rear 650/65R38、650/65R42、520/85R38、20.8-38
Steering Gear Hydraulic steering
Brake Oil immersed multiplate disc
Working
Device

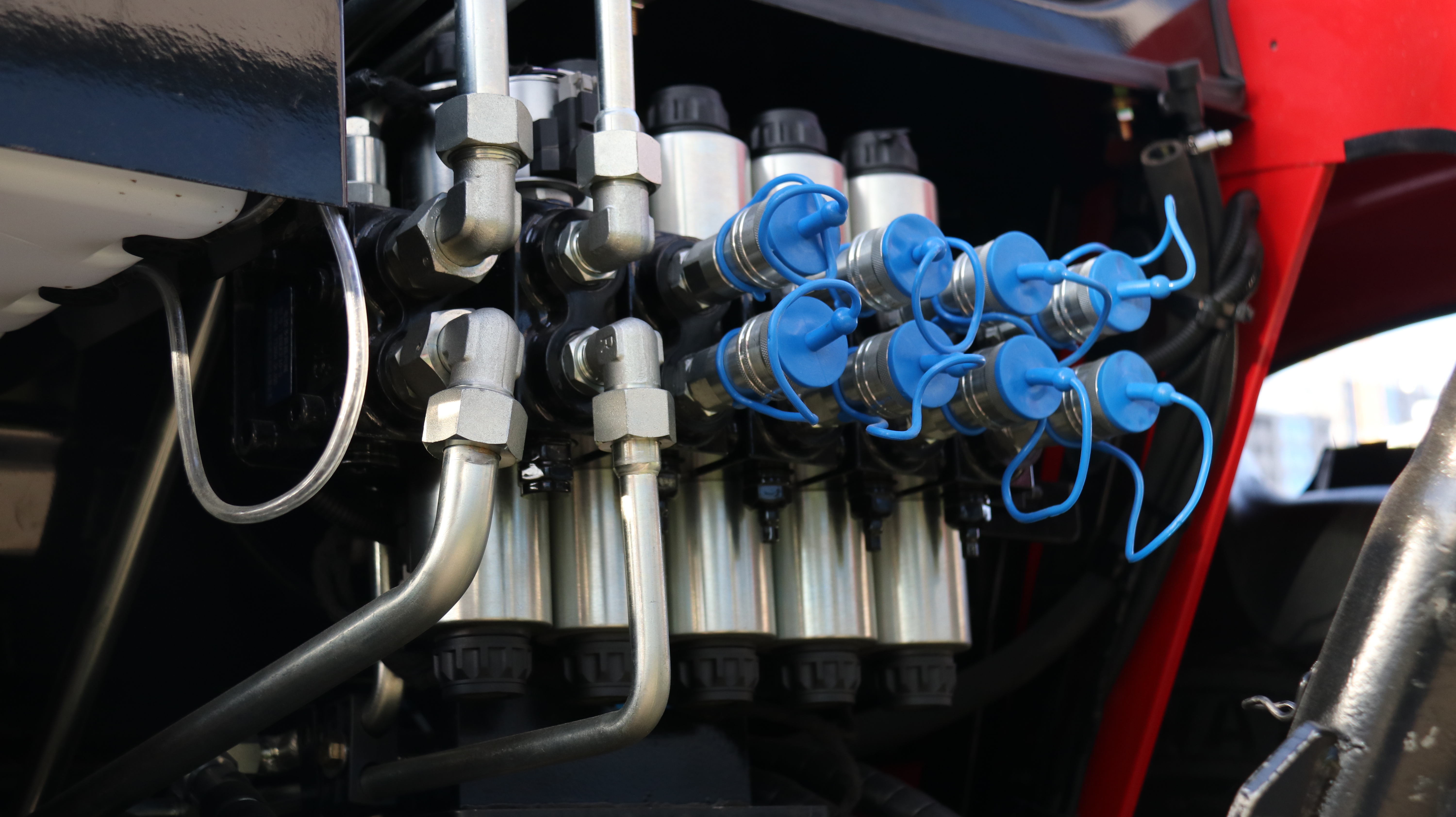

Hydraulic System Lifting Capacity at 610mm Behind Lift Point (N) 46000

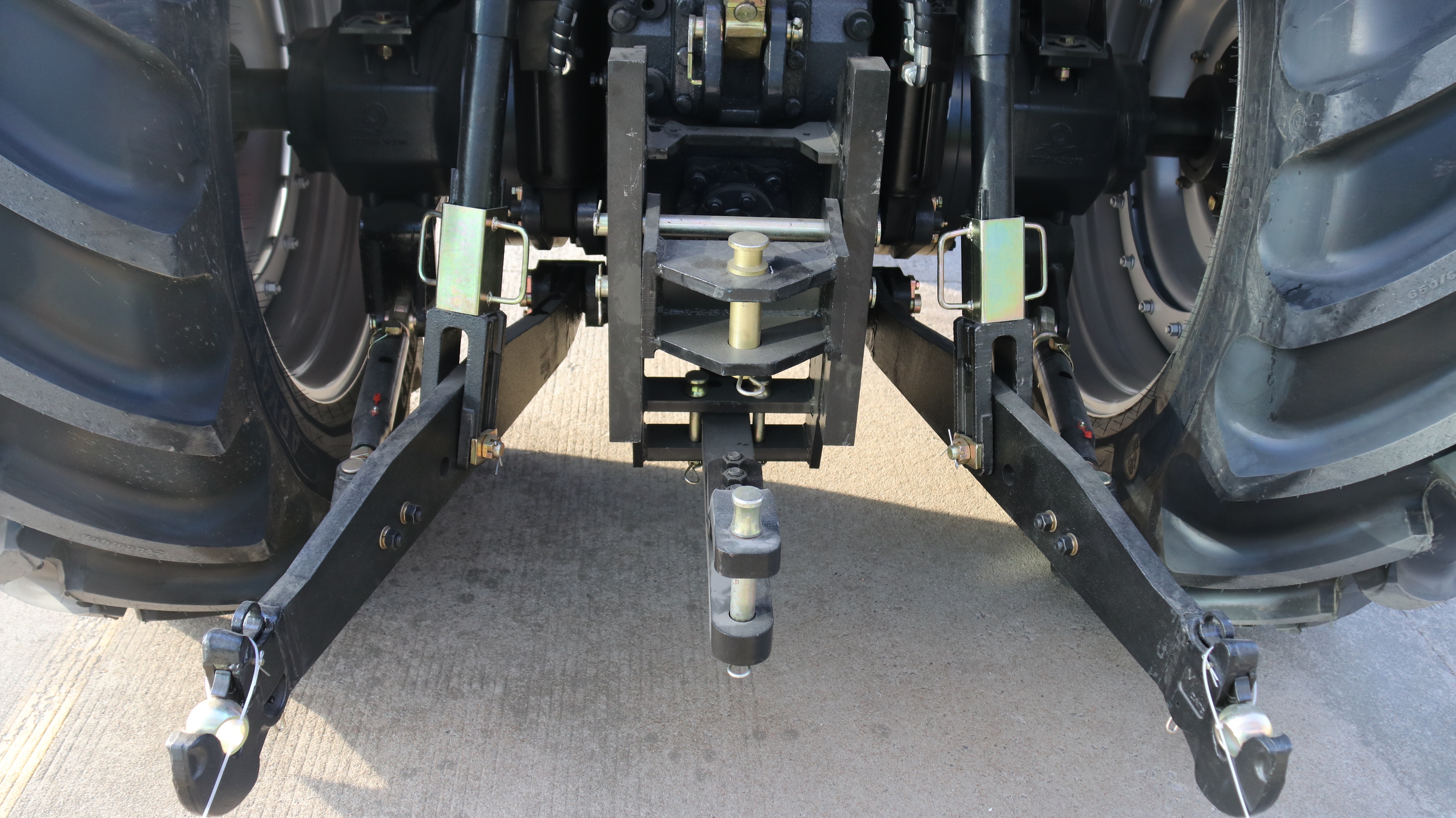

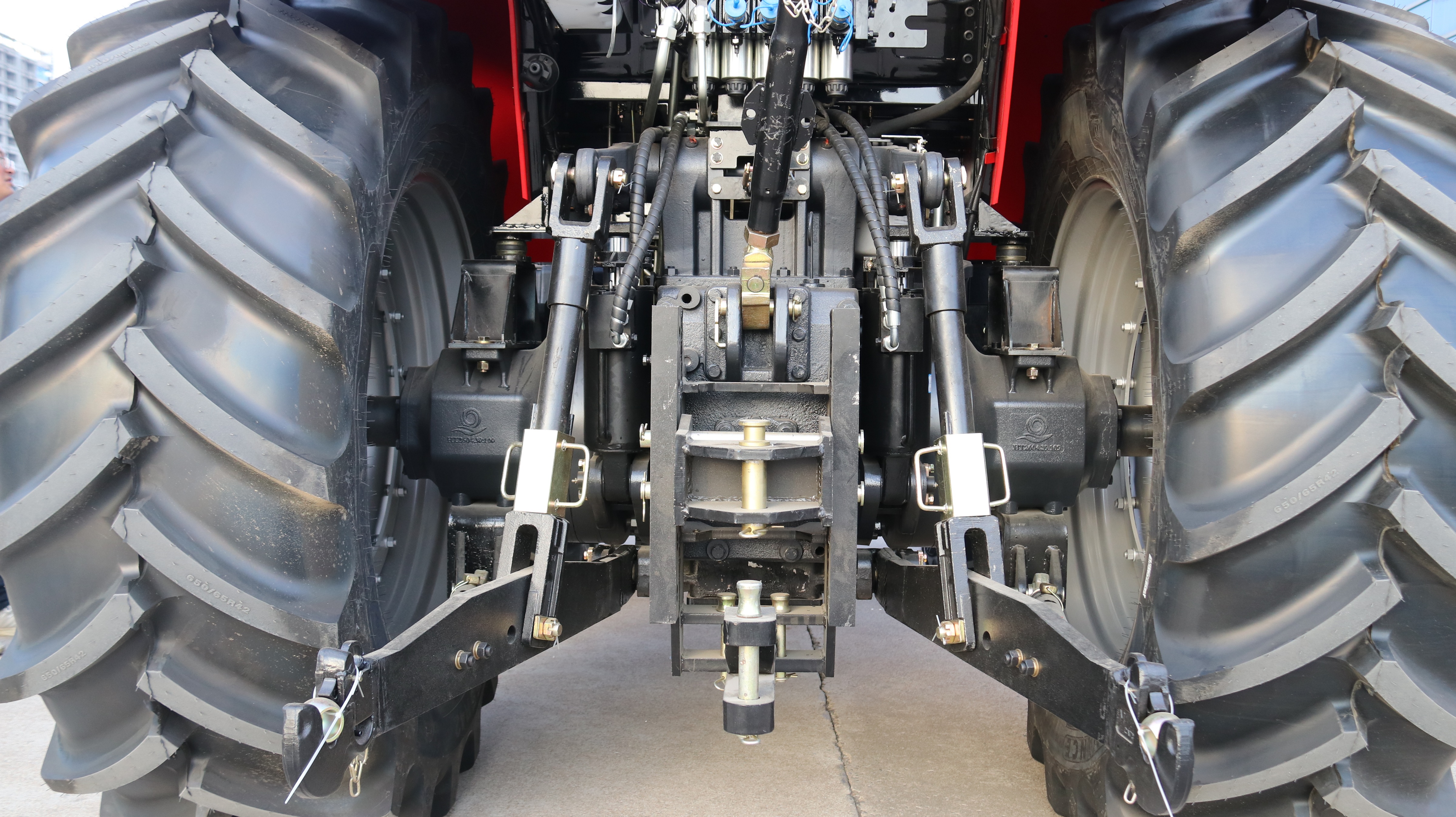

3-Point Suspension Category:III
P.T.O Shaft Rotating
Speed (rpm)
760/1000、540/1000、760/850
